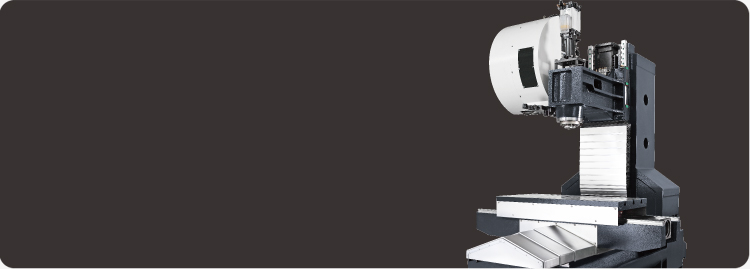

VERTICAL HI-SPEED MACHINING CENTERS
- Hardware, molds, automotive parts, communication and medical devices
- The short nose spindle presents outstanding rigidity. It also increases efficiency while lowering tool wear.
- 48 meters rapid traverse on three axes greatly reduces machining time.
- High speed, silent ball screw and roller type linear way exhibit high speed, high accuracy and high rigidity features.
- Stable automatic tool change system not only reduces non-cutting time, but also extends spindle life.
- Front side chip exhaust with optimal chip exhausting angles and extra large chip flushing rate.
Highlight：
Specification
| Mitsubishi Controller M80 | |||||
| Travel | X-axis travel | 700mm | Table | Table size (mm) | 800x450 |
|---|---|---|---|---|---|
| Y-axis travel | 500 mm | T-slot (W×No.×Pitch) | 18x3x130 mm | ||
| Z-axis travel | 550 mm | Table loading capacity | 400 kg | ||
| Spindle | Spindle nose to table | 120~670 mm | ATC | Tool selection method | Arm type |
| Type of spindle | BT-40 | No. of tools | 24 pcs | ||
| Spindle transmission | Belt Drive | Max. tool weight | 7 kgs | ||
| Spindle R.P.M. | 10,000 rpm |
Coolant system and power |
Coolant tank capacity | 220 L | |
| Spindle motor | 7.5 kw | Air pressure | 6 kg | ||
| Feedrafe | X/Y/Z rapid traverse | 48 / 48 / 48 M/min | Power requirement | 15 KVA | |
| Three axes ball screws (mm) | ø32 / P16 / C3 | ||||
| Three axes linear guide(P class) | X, Y, Z-axis linear guide:roller type 35 mm x 4 blocks | Machine size | machine size (LxWxH) (mm) | 2000Ｘ2450Ｘ3100 | |
| Three axes transmission method | Direct drive | Max. machine weight | 4500 kg | ||
| Cutting feed rate | 1~10,000 mm/min | ||||
