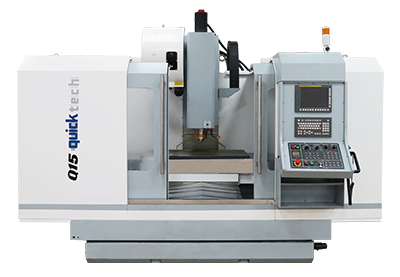

Q15
VERTICAL MACHINING CENTERS
- Hardware, molds, automotive parts, communication, medical devices and aerospace
- The optional bed construction design is able to resist inertia generated by high "G" with maximum stability.
- The short nose spindle presents outstanding rigidity. It also increases efficiency while lowering tool wear.
- 36 meters rapid traverse on three axes greatly reduces machining time.
- Stable automatic tool change system not only reduces non-cutting time, but also extends spindle life.
- Front side chip exhaust with optimal chip exhausting angles and extra large chip flushing rate.
Highlight:
Specification
Machine Type | Q15 |
Control unit | M80 |
Spindle Speed | 8,000 rpm |
Spindle Type | BT-40 |
Spindle Power | 11 kw |
Table Dimension | 1700 x 600 |
Work area | 1500 x 760 |
Max. Loading Capacity | 1500kg |
Spindle Nose to Table | 100~980mm |
Spindle Center to Column | 744 |
Table Surface to Floor | 835 |
T-Slot(WxNo.xPitch) | 18 x 5 x 100 mm |
X / Y / Z axis Travel | 1500mm/640mm/880mm |
X / Y / Z axis Rapid Traverse | 36 / 36 / 30 M/min |
X / Y / Z axis Servo motor | 3.5 / 3.5 / 3.5 kw |
Cutting Feed | 1~10,000 mm/min |
Axis Transmission | Direct drive |
Balls screw Diameter | 40 / P12 / C3 |
Three axes linear guide(P class) |
X-axis: Roller Type 45mm x 2pcs x 6 blocks Y-axis: Roller Type 45mm x 3pcs x 5 blocks Z-axis: Roller Type 45mm x 2pcs x 4 blocks |
Command Position | 0.003mm |
Repeatability | 0.008mm |
ATC Type | Arm type |
Number oftools | 24PCS |
tool Selection | Random |
Tool Changing Time | 2sec |
Tool Size(Dia. x Length) | 125 mm x 350 mm |
Max. Tool Weight | 8KGS |
Position of Lubrication | Ball Screw & Linear Guide Way |
Lubricator Tank | 2 Liters |
Machine Length/Width/Height | 4780 x 2590 x 3230 |
Machine Weight |
7000kg |
