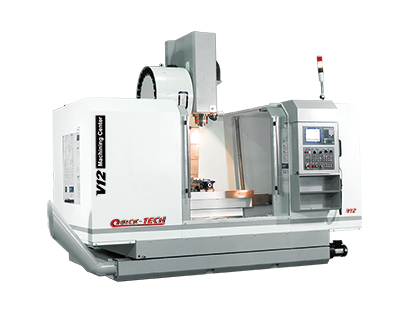

V10 / V12
biggerimensions With a working area up to 1200 x 600 x 650 mm, the vertical machining centre is designed to work on medium or big workpieces.
The major parts on this series are constructed of high-quality robust FC30meehanite castings. 3 axes equipped with 40mm diameter C3 class high precision ballscrews, mounted with double ballscrew support bearings ( P4 class), ensure high positioning accuracy and durability.
Specification
| Machine Type | V10 | V12 |
|---|---|---|
| Spindle Speed | 250-10000rpm | |
| Spindle Type | BT-40 | |
| Spindle Shaft Hardness | HRC58-62 ° | |
| Spindle Orientation | Encoder | |
| Spindle Power | 7.5KW Servo Spindle Motor | 7.5KW Servo Spindle Motor |
| Clamping Force | 350-400KG | |
| Table Dimension | 1200mm x 500mm | 1300mm x 600mm |
| Work area | 1000mm x 500mm | 1200mm x 600mm |
| Max. Loading Capacity | 750Kg | 1000Kg |
| Spindle Nose to Table | 100mm-670mm | 80mm-770mm |
| Spindle Center to Colum | 550mm | 650mm |
| Table Surface to Floor | 1000mm | 1050mm |
| T-Slot | 16mm x 100mm x 4 | 18mm x 100mm x 5 |
| X / Y / Z axis Travel | 1000mm / 500mm / 570mm | 1200mm / 600mm / 610mm |
| X / Y / Z axis Rapid Speed | 30M/min | 24M/min |
| X / Y / Z axis Servo motor | Mitsubishi AC Servo2.0KW | Mitsubishi AC Servo3.0KW |
| Cutting Feed | 20-8000mm / min | |
| Axis Transmission | Direct Drive | |
| Balls screw Diameter | 40mm | |
| Accuracy | C3 | |
| Command Position | 0.001mm | |
| Repeatability | 0.005mm | |
| ATC Type | Arm Type / Armless (OPTION) | |
| Number of tools | 24tools | 24tools |
| Tool Selection | Random | |
| Tool Changing Time | 2sec | |
| Tool Size (Dia x Length) | 75mm x 250mm | |
| Max. Tool Weight | 7Kg | |
| Lubrication Type | AUTO | |
| Position of Lubrication | Slide Way&Ball Screw | |
| Lubricator Tank | 2Liters | |
| Cycle time of Lubrication | 15min | |
| Lubricator Power | 120W | |
| Machine Length/Width/Height | 3350mm/2500mm/2600mm | 3550mm/2600mm/3000mm |
| Machine Weight | 5800kg | 6500kg |
