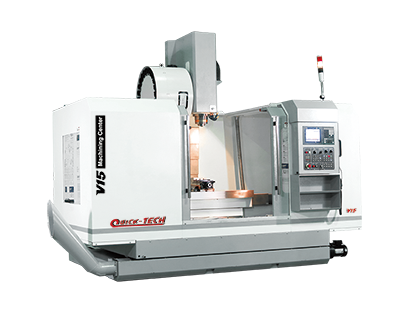

V13 / V15
bigger dimensions
With a working area of 1500 x 700 x 750 mm, the vertical machining centre is also designed to work on big workpieces.
Directly connected with ballscrew and AC servo motors, the high precision coupling offers the best rigidity and keeps the accuracy of axial slide assembly under high speed movement. The machine is well equipped and has a favorable cost-performance ratio.
Specification
| Machine Type | V13 | V15 |
|---|---|---|
| Spindle Speed | 250-8000pm | |
| Spindle Type | BT-40 | |
| Spindle Shaft Hardness | HRC58-62 ° | |
| Spindle Orientation | Encoder | |
| Spindle Power | 11KW Servo Spindle Motor(15KW OPTION) | |
| Clamping Force | 350-400KG | |
| Table Dimension | 1500mm x 660mm | 1800mm x 660mm |
| Work area | 1300mm x 700mm | 1500mm x 700mm |
| Max. Loading Capacity | 1050Kg | 1300Kg |
| Spindle Nose to Table | 130mm-800mm | |
| Spindle Center to Colum | 750mm | |
| Table Surface to Floor | 1050mm | |
| T-Slot | 18mm x 100mm x 5 | |
| X / Y / Z axis Travel | 1300mm / 700mm / 670mm | 1500mm / 700mm / 670mm |
| X / Y / Z axis Rapid Speed | 24M/min | |
| X / Y / Z axis Servo motor | Mitsubishi AC Servo3.5KW | |
| Cutting Feed | 20-8000mm / min | |
| Axis Transmission | Direct Drive | |
| Balls screw Diameter | 40mm | |
| Accuracy | C3 | |
| Command Position | 0.001mm | |
| Repeatability | 0.005mm | |
| ATC Type | Armless / Arm Type (OPTION) | |
| Number of tools | 24tools | |
| Tool Selection | Random | |
| Tool Changing Time | 2sec | |
| Tool Size (Dia x Length) | 75mm x 250mm | |
| Max. Tool Weight | 7Kg | |
| Lubrication Type | AUTO | |
| Position of Lubrication | Slide Way&Ball Screw | |
| Lubricator Tank | 2Liters | |
| Cycle time of Lubrication | 15min | |
| Lubricator Power | 120W | |
| Machine Length/Width/Height | 3600mm/3000mm/3150mm | 3850mm/3000mm/3150mm |
| Machine Weight | 8200kg | 8600kg |
