V20 / V25
the biggest range of all Quick-TECH milling centers

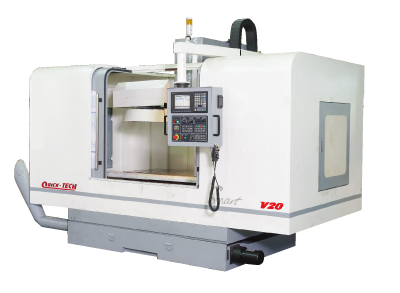

Machining of workpieces up to 2500 x 850 x850mm is possible with V20/V25. With Mitsubishi CNC-Control, 3 axes equipped with 40mm diameter C3 class high precision ballscrews, 8,000 r.p.m as well as a tool storage capacity of 24 tools the machine features outstanding equipment and high quality.
Specification
| Machine Type | V20 | V25 |
|---|---|---|
| Spindle Speed | 250-8000pm | |
| Spindle Type | BT-40 / BT-50 (OPTION) | |
| Spindle Shaft Hardness | HRC58-62 ° | |
| Spindle Orientation | Encoder | |
| Spindle Power | 15KW Servo Spindle Motor | |
| Clamping Force | 350-400KG | |
| Table Dimension | 2300mm x 750mm | 2800mm x 750mm |
| Work area | 2000mm x 850mm | 2500mm x 850mm |
| Max. Loading Capacity | 1800Kg | |
| Spindle Nose to Table | 100mm-810mm | |
| Spindle Center to Colum | 850mm | |
| Table Surface to Floor | 1150mm | |
| T-Slot | 18mm x 100mm x 6 | |
| X / Y / Z axis Travel | 2000mm / 850mm / 710mm | 2500mm / 850mm / 710mm |
| X / Y / Z axis Rapid Speed | 20M/min | |
| X / Y / Z axis Servo motor | Mitsubishi AC Servo3.5KW | |
| Cutting Feed | 0050-6000 rpm | |
| Axis Transmission | Belt Drive | |
| Balls screw Diameter | 50mm | |
| Accuracy | C3 | |
| Command Position | 0.001mm | |
| Repeatability | 0.005mm | |
| ATC Type | Armless / Arm Type (OPTION) | |
| Number of tools | 24tools | |
| Tool Selection | Random | |
| Tool Changing Time | 2sec | |
| Tool Size (Dia x Length) | 100mm x 250mm | |
| Max. Tool Weight | 7Kg | |
| Lubrication Type | AUTO | |
| Position of Lubrication | Slide Way&Ball Screw | |
| Lubricator Tank | 2Liters | |
| Cycle time of Lubrication | 15min | |
| Lubricator Power | 120W | |
| Machine Length/Width/Height | 4000mm/3000mm/3150mm | 4500mm/3000mm/3150mm |
| Machine Weight | 9450kg | 9800kg |
